106 Chorus SMD DIY KIT1
The 106CHORUS is an accurate recreation in EURORACK format of one of the most sought after choruses, the one from a famous analog polysynth from the eighties.

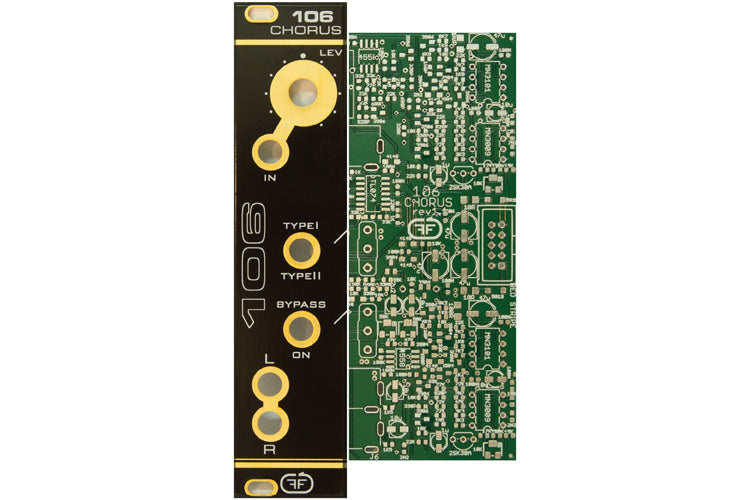

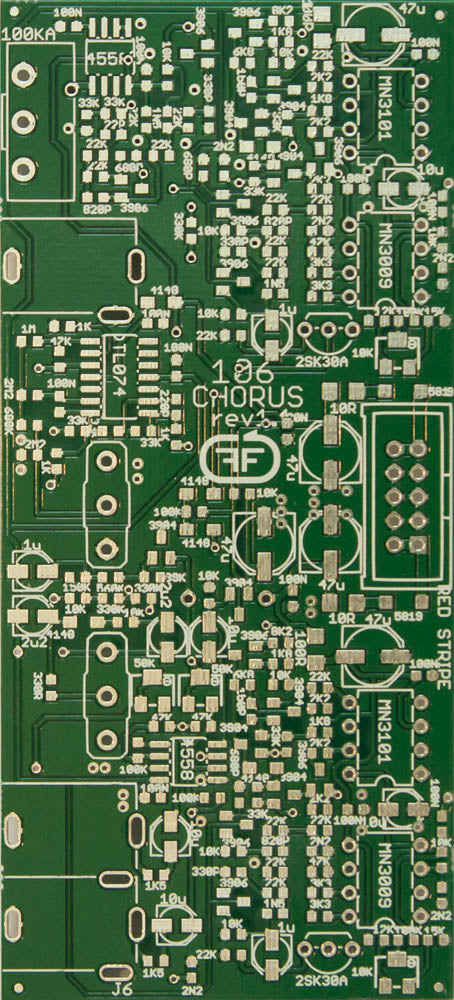

SMD KIT1 : PCB + Front Panel
Please read the disclaimer for SMD PCB on MuffWiggler before buying.
-mono analog input
-input level pot for optimal signal
-stereo analog output (L + R)
-bypass switch (ON / BYPASS)
-chorus mode switch (MODE1 / MODE2)
-standard 10 pin euro power (+12V / -12V)
-power consumption +12V 24mA , -12V 24mA
For documentation and forum visit :106 DIY - Muffwiggler
