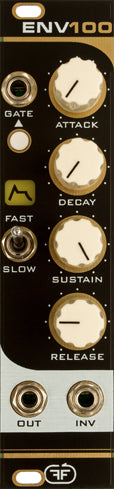

ENV-100

This is probably the fastest envelope generator in Modularland.
Why? Because it is based on the fastest one. The classic Japanese modular from the seventies everyone loves.

Tech specs:

- Panel width 6HP

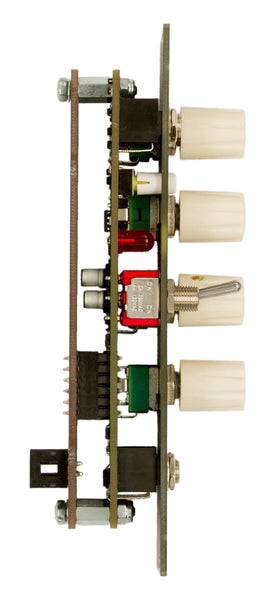

- 35mm depth behind the panel, including the power connector
- 4 control pots : Attack, Decay, Sustain, Release
- 1 gate switch : triggers ADSR cycle
- 1 time switch : switches between fast and slow envelope times
- One normal and one inverting output jack 8V peak
- Standard 10 pin euro power +12V/-12V
- Power consumption +12V 20mA , -12V 15mA

FAST TIME
Attack Time 4ms-2s
Decay Time 8ms-4s
Sustain Level 0-8V
Release Time 8ms-4s

SLOW TIME
Attack Time 6ms-20s
Decay Time 15ms-40s
Sustain Level 0-8V
Release Time 15ms-40s

▼Download - User Manual
