We currently have 4 in stock.


Regular price €90.00

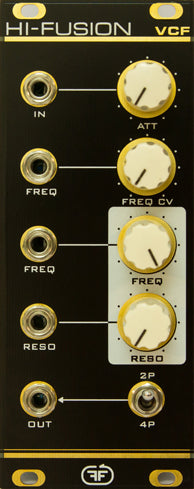

HI-Fusion VCF is a redesign of a classic high pass OTA VCF with corrections and addons.
It's working very well on v/oct and with FM modulation on FREQ cv input.

It's one of the best VCFs based on LM13700 chips, sounding like the classic SH and System filter.

Tech specs:

-width 10HP

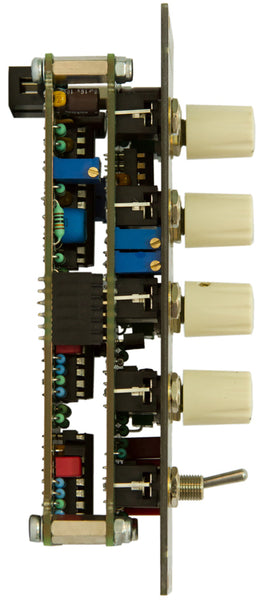

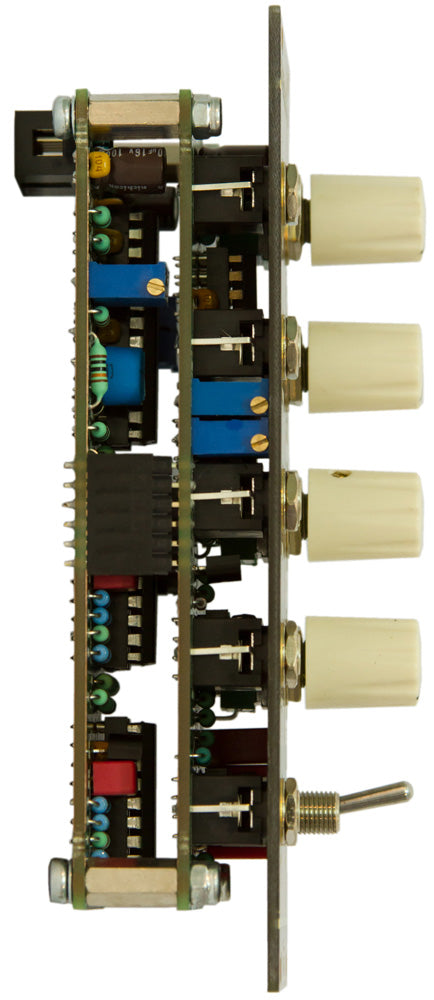

-42mm depth behind the panel, including the power connector
-standard 10 pin euro power (+12V / -12V) (works also at +15V / -15V)
-power consumption +12V 22mA , -12V 22mA

For more details, service manual and discussions please visit :

HI-FUSION VCF DIY - Muffwiggler
