LFO-10

€50.00

This little module is an evolution of the LFO of the famous MS monophonic synth from the seventies, adapted to eurorack format.

Tech specs:

- 4HP width

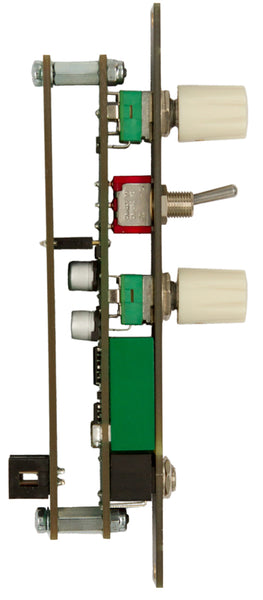

- 35mm depth behind front panel including the power connector
- 2X control pots for FREQUENCY and WAVEFORM
- 1X FREQUENCY RANGE switch: LOW and HIGH
LOW - 18mHz (55sec) - 0,7Hz (1.4sec)
HIGH - 0,63Hz (1.6sec) - 24Hz (42msec)
- 2X outputs : SQUARE 0/10V Vpp and TRIANGLE -5V/5V Vpp
- standard 10 pin euro power +12V / -12V
- power consumption +12V 20mA , -12V 15mA

▼Download - User Manual
