FEEDBACK Modules

LFO-20

Regular price €65.00

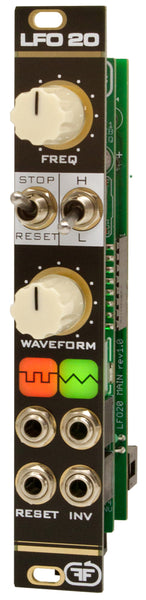

Complex analogue LFO in just 4HP!
Waveshaped Square and Triangle output plus extra inverted Triangle output.
Reset and gate function, multiple LFOs can be chained for complex gates and CVs.
Very long LFO time on minimum setting, more than 1min.

Tech specs:

- 4HP width

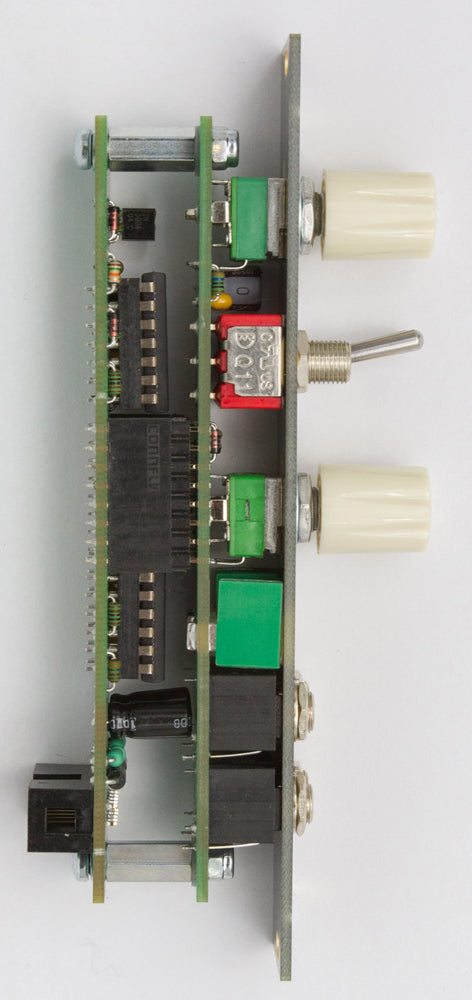

- 35mm depth behind front panel including the power connector
- 2X control pots for FREQUENCY and WAVEFORM
- 1X FREQUENCY RANGE switch:  LOW and HIGH
        LOW   -  4,7mHz (210sec/3.5min) - 0,625Hz (1.4sec)
        HIGH  -  183mHz (6sec) - 25Hz (40msec)
- 1X MODE switch : STOP and RESET
- 1X input jack : RESET
- 2X outputs : SQUARE 0/10V Vpp and TRIANGLE -5V/5V Vpp
- standard 10 pin euro power +12V / -12V
- power consumption +12V 20mA , -12V

▼Download - User Manual

For more details and forum visit :

LFO-20 Module - Modwiggler
