Squeeze 2

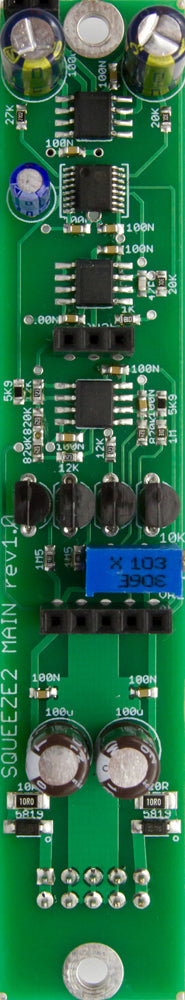

- SMD transistors are changed to matched through hole ones
- all capacitors are now through hole Panasonic LowESR
- added trimming circuit to adjust 0 gain for the center of make-up gain pot so the SQZ will have 0 amplification on middle adjustments

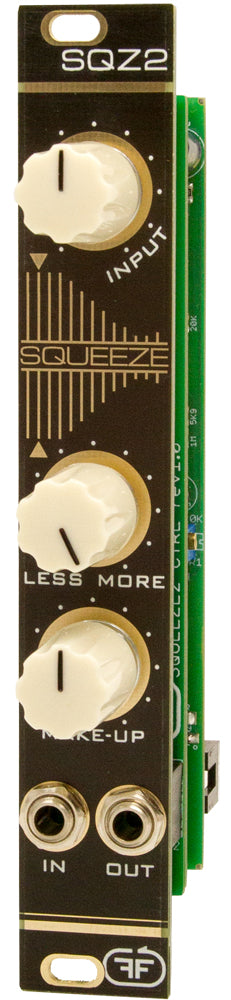

4HP Compressor designed for continuous adjustment of gain, threshold and compression ratio with a single potentiometer.
There is also a knob for input level and a knob for make-up gain.
The module is based on high-performance THAT4305 Blackmer®  VCA chip.

DEMOS COMING SOON!

Tech specs:

-width 4HP
-35mm depth behind the panel, including the power connector
-1 audio input : IN
-1 audio level pot : INPUT
-2 control pots : LESS/MORE (compression), MAKE-UP Gain
-1 output : OUT
-standard 10 pin euro power +12V / -12V
-power consumption +12V 25mA -12V 25mA
