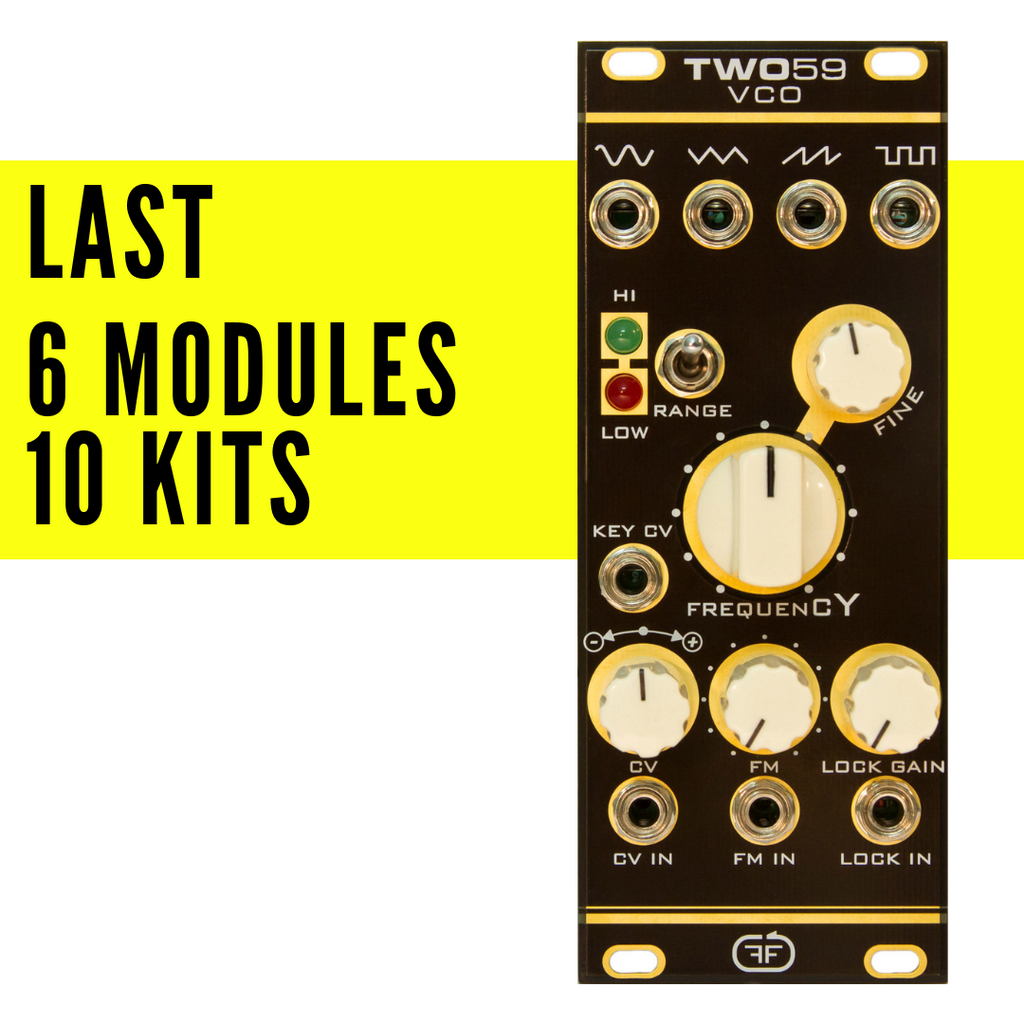

We are discontinuing the TWO59 VCO. We can't find some of the rare parts anymore and many are coming as fakes. These are the last modules we have.
The TWO59 is an accurate recreation in EURORACK format of the VCO/LFO section of the most sought after vintage west coast complex oscillator.
Because of the triangle core, the VCO works very well for FM modulation.

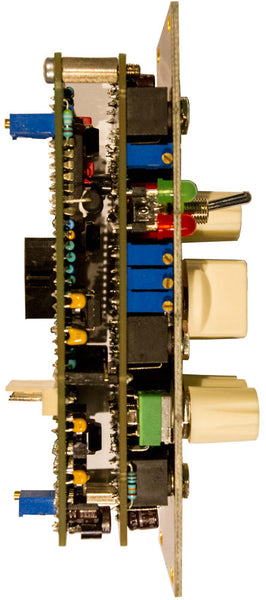

-38mm depth behind the panel, including the power connector (back capacitors variant)
-3 cv inputs : KEY CV, CV IN, FM IN
-2 cv level pots : CV and FM
-1 audio input : LOCK IN (for lock gain - works as a hard sync)
-1 audio level in pot : LOCK GAIN
-2 frequency pots : FREQUENCY (coarse) and FINE
-1 frequency range switch : LOW and HI (for LFO and VCO)
-4 outputs : SINE, TRAINGLE, RAMP, SQUARE
-standard 10 pin euro power +12V / -12V
-power consumption +12V 40mA , -12V 25mA
