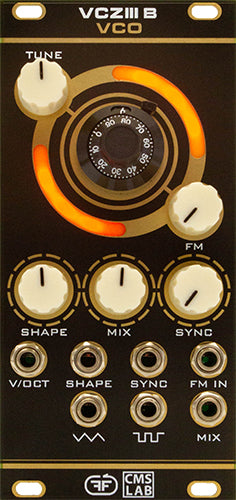

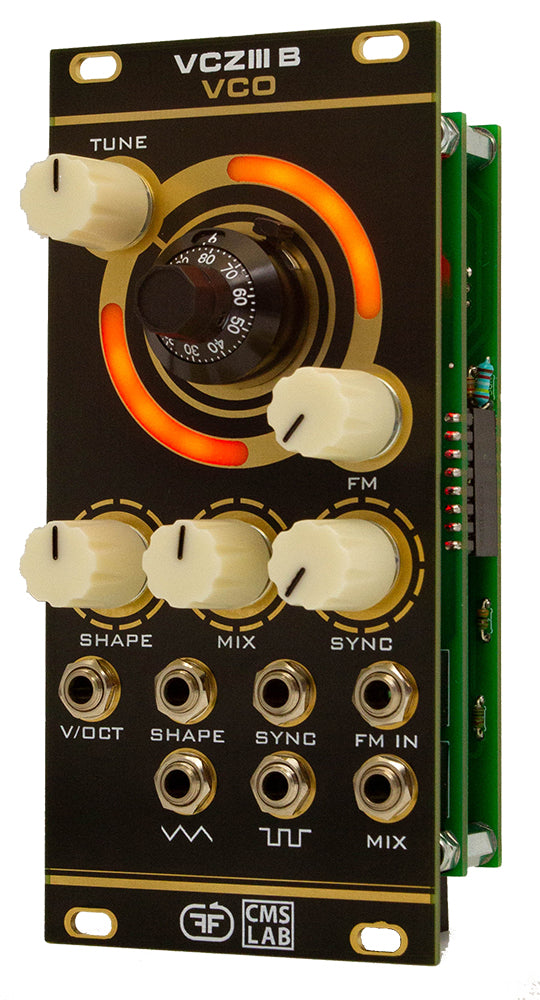

VCZIIIB VCO Premium

Regular price €210.00
v

The VCZIII voltage controlled oscillator modules are our latest creation and are based on the VCOs of one of the most revered analog instruments, the famous British pin matrix synth released in 1969.
The VCZIII series VCO is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCOs from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.

There are two type of VCOs, VCZIII A based on VCO1 with variable shape SINE & SAW waveforms, VCZIII B based on VCO2 & VCO3 with variable TRIANGLE & PULSE waveforms.
Also, each VCO comes in two versions, one with normal fine tune potentiometers and one with precision multiturn potentiometer.

THIS VERSION IS WITH BOURNS MULTITURN FINE TUNE POTENTIOMETER.

Tech specs:

- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA

▼Download - User Manual

For more details and forum visit :

VCZIIIB Module - Modwiggler
